Key Features
General
Event and schedule controlled switching
Precise current metering of up to 9 electrical units and residual current
2 connectors for plug-and-play sensors
Simple and quick mounting due to integrated mounting straps
NTP function can be activated
Integrated overvoltage protection type 3

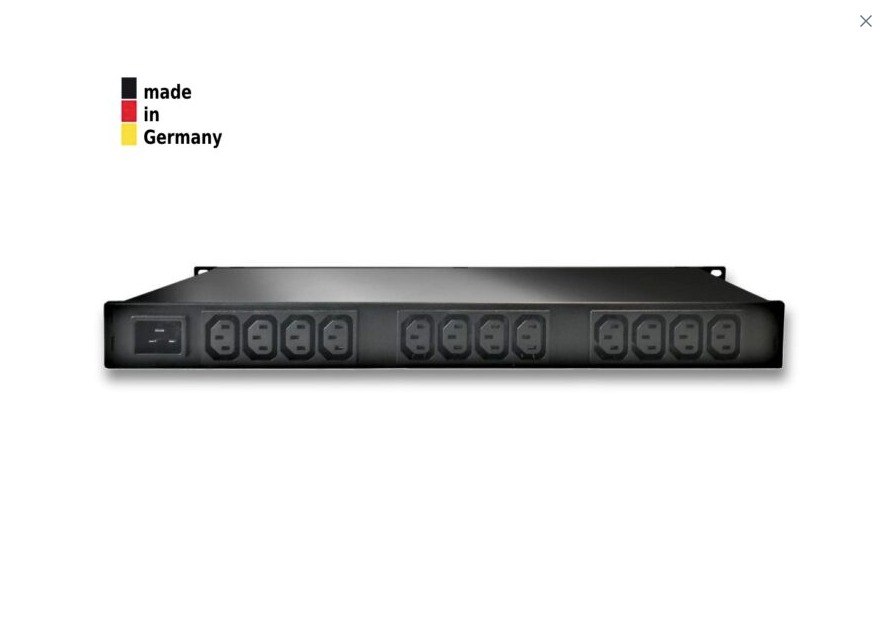

Order Code: 8041-1 (12x IEC C13) / 8041-2 (12x IEC C13 Lock)
Switching Function
Each power port can be switched via HTTP(S), SNMP, ModbusTCP or command line interface via Telnet, SSH, MQTT and serial interface
Programmable on/off sequences for remote reboots (Remote Reboot)
Power ports can be switched when preset sensor thresholds are exceeded
Self-healing function thanks to 12-channel watchdog
Switching state and switch-on delay up to 9999 seconds
Sequential switch-on with a latency of 1 second
Zero Voltage Switching (ZVS)
Metering Function
Power consumption metering (kWh) with 2 energy counters
Metering of current, voltage, power factor, frequency, active power, apparent power and reactive power
2 connectors for combined plug-and-play sensors
Security
Integrated type 3 overvoltage protection
Long-life High-Inrush Relays
Generation of status messages and alarms
Encrypted communication through SSL and SSH
Password protected access
